Retaining wall drainage: design and maintenance considerations

By John W  |  Reviewed 9 September 2026

A retaining wall drainage system must manage surface runoff, relieve water within the retained soil and convey collected water to a suitable discharge point. Installing a slotted pipe without considering the complete water path is not a complete drainage solution.

The appropriate arrangement depends on the wall system, ground conditions, catchment and local drainage requirements. The project drawings should govern construction.

Key points

  • Surface water and groundwater are different problems and may require different controls.
  • Free-draining backfill, filtration, a collection pipe and a workable outlet need to operate as one system.
  • Roof water or a large paved catchment should not be directed behind a wall unless the system was designed for that inflow.
  • Drainage must not create erosion, ponding or adverse flow onto neighbouring land.
  • Outlets, pits and surface drains need to remain accessible for inspection and maintenance.

How water affects a retaining wall

Water accumulating behind a wall can create hydrostatic pressure in addition to the earth pressure considered in the structural design. Saturated or softened soil can also provide less reliable support and affect sliding, bearing and overall stability.

Uncontrolled flow can carry fine soil through joints, erode backfill, scour around footings and damage adjoining ground. Staining or visible seepage may be a drainage symptom, but the significance depends on the wall type, water source and whether movement or soil loss is also occurring.

Drainage is part of the wall system. The structural design, backfill, filtration, pipework, surface levels and final outlet should be coordinated before construction rather than resolved after the wall has been built.

Surface runoff and groundwater require different paths

Surface water comes from rainfall, roofs, paving, driveways, gardens and higher ground. It is normally managed with suitable site grading, gutters, channels, pits or surface drains so that concentrated runoff does not enter vulnerable backfill or flow over the wall.

Groundwater and seepage move through soil, fill or rock. They may be seasonal, become apparent after prolonged rain or follow an interface between different materials. Persistent seepage can require geotechnical and hydraulic consideration beyond a standard residential detail.

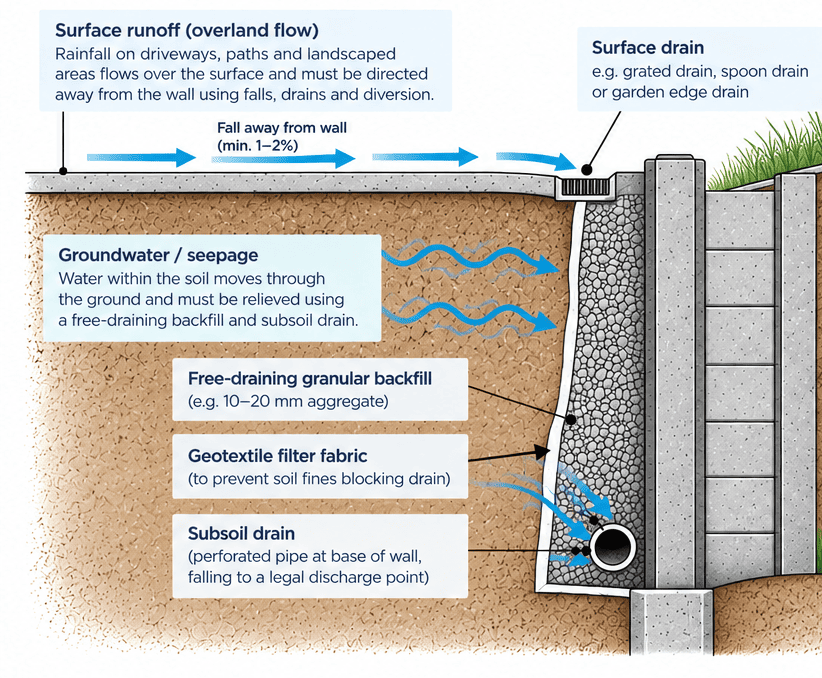

Retaining wall drainage diagram comparing surface runoff with groundwater seepage, free-draining backfill, geotextile and subsoil drain
Figure 1. Typical drainage paths. Surface runoff is directed away from the wall while seepage moves through free-draining material and filtration to a collector and suitable outlet. This is a concept figure only; the final detail must match the wall system and site.

Components of a complete drainage system

Component Function Common problem
Surface falls Direct rainfall and runoff away from the retained area and prevent ponding. Landscaping or paving settles and begins to fall toward the wall.
Surface drain Intercepts concentrated runoff where the site layout requires it. A channel or grate is installed without a functioning, maintainable outlet.
Drainage aggregate Provides a free-draining zone through which seepage can reach the collector. Excavated clay or mixed spoil is placed directly against the wall.
Filter or geotextile Helps prevent fine soil migrating into and clogging the drainage layer. The filter is omitted, damaged, poorly lapped or incompatible with the surrounding soil.
Collection pipe Collects water at the base of the drainage zone and conveys it toward the outlet. The pipe is flat, crushed, blocked or installed with no workable discharge route.
Discharge point Releases or connects collected water at a location suitable for the property and current local requirements. The pipe terminates behind the wall, on an erodible slope or at the neighbour’s boundary.

Weepholes can provide relief in some wall systems, but they do not replace suitable backfill, filtration, collection and discharge. Similarly, drainage aggregate without separation can progressively clog as fine soil migrates into its voids.

Drainage planning before construction

Map the water sources

Identify high and low points, roof outlets, paving, upstream catchments, neighbouring runoff, seepage, existing pits and the proposed outlet.

Coordinate the wall detail

Confirm the wall type, footing, backfill zone, filtration, pipe size and grade, inspection access and connections before excavation.

Confirm the discharge arrangement

Establish where collected water can lawfully and practically discharge without causing erosion, ponding or adverse flow to nearby property.

Protect the system during construction

Prevent pipe crushing, geotextile damage and contamination of drainage aggregate. Record the location of outlets and inspection points before they are covered.

When a standard drainage detail may be insufficient

Project-specific engineering or geotechnical advice is particularly important where:

  • water seeps from a cut face, rock layer or soil interface;
  • the wall is below a steep slope or substantial upstream catchment;
  • the site contains reactive clay, uncontrolled fill or soft ground;
  • a house, pool, driveway or another wall is nearby;
  • several walls interact on a slope;
  • there is no obvious gravity outlet; or
  • the proposed drainage must connect to regulated stormwater infrastructure.

Information to provide

Useful information includes a site survey and proposed levels, wall dimensions and construction type, photographs taken during and after rain, roof and surface-drainage locations, soil information and the proposed discharge point.

For the wider approval pathway, see the Queensland retaining-wall approval guide.

Inspection and maintenance

Inspect the wall and surrounding ground after heavy rain and at regular intervals. Keep visible outlets, surface drains, grates and pits clear. Restore surface falls if landscaping settles and repair erosion before it enlarges.

Warning signs include persistent wet areas, soil washing from joints, blocked outlets, new bulging or leaning, cracking, footing scour and sudden movement. If instability is suspected, keep people away from the affected area, avoid excavation beside the wall and arrange an engineering inspection.

Common questions

Does every retaining wall need a slotted drainage pipe?

The appropriate system depends on the wall type, soil, groundwater, catchment and design. Many walls use a slotted collector, but the pipe is only one part of the drainage path.

Where should retaining-wall drainage discharge?

To a suitable point established for the property and current local requirements. The route should avoid erosion, ponding and adverse effects on buildings or neighbouring land.

Can retaining-wall drainage connect to stormwater?

That depends on the property, type of water, available system capacity and local requirements. Obtain the appropriate plumbing, engineering or council advice before making a connection.

Should the pipe slots face up or down?

Do not rely on a general internet rule. Proprietary pipe systems and engineered details can differ. Follow the project drawings and the pipe manufacturer’s current instructions.

What if water is already coming through the wall?

Record where and when it appears, check accessible outlets for blockage and avoid excavating beside a distressed wall. Arrange an inspection if there is movement, cracking, erosion, soil loss or uncertainty about stability.

Primary references: Queensland Building Act 1975; QBCC Guide to Foundation Maintenance and Footing Performance; and QBCC guidance on subsidence and site drainage.

General information only

This guide provides general information. Drainage, plumbing and engineering requirements depend on the site, wall system and current local requirements. Use the project drawings and obtain advice from appropriately qualified professionals before construction.
